Menu
Home Explore People Places Arts History Plants & Animals Science Life & Culture Technology
On this page
Tungsten borides
Chemical compound

Tungsten borides are compounds of tungsten and boron. Their most remarkable property is high hardness. The Vickers hardness of WB or WB2 crystals is ~20 GPa and that of WB4 is ~30 GPa for loads exceeding 3 N.

Related Image Collections Add Image
Profiles
1 Image
We don't have any YouTube videos related to Tungsten borides yet.
We don't have any PDF documents related to Tungsten borides yet.
We don't have any Books related to Tungsten borides yet.
We don't have any archived web articles related to Tungsten borides yet.

Synthesis

Single crystals of WB2−x, x = 0.07–0.17 (about 1 cm diameter, 6 cm length) were produced by the floating zone method,4 and WB4 crystals can be grown by arc-melting a mixture of elemental tungsten and boron.5

Structure

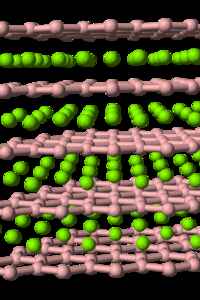

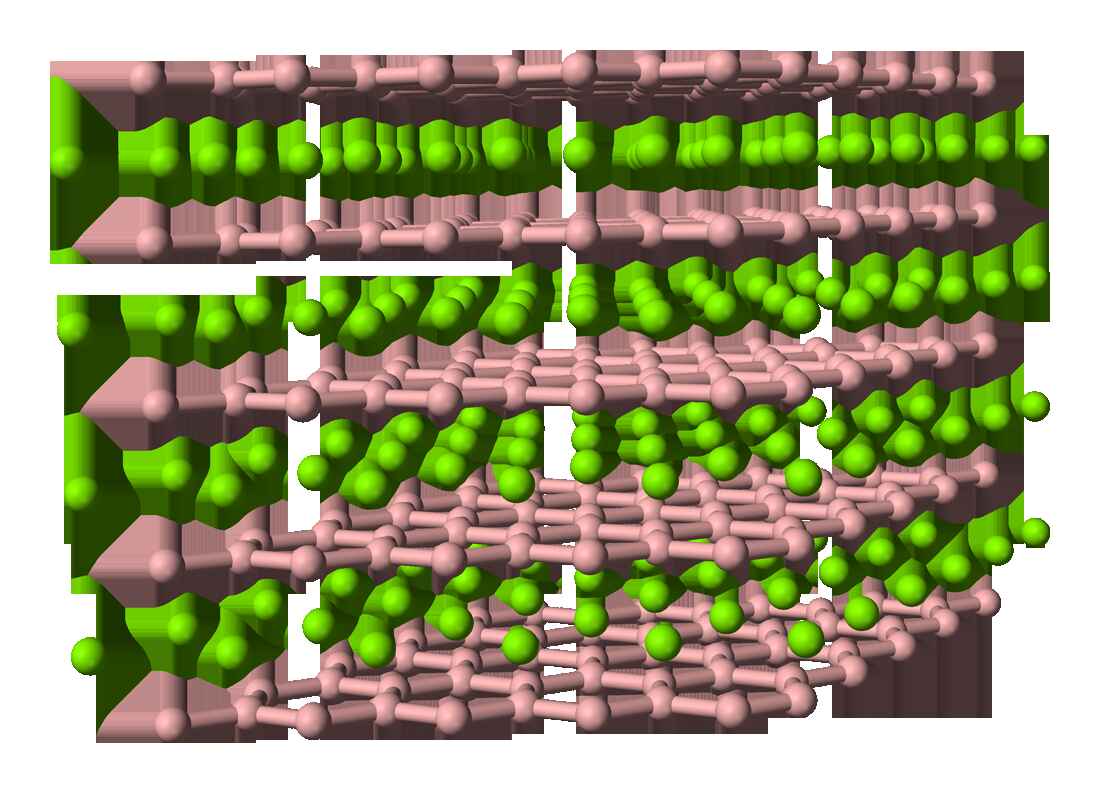

WB2 has the same hexagonal structure as most diborides (AlB2, MgB2, etc.).6 WB has several forms, α (tetragonal), β (orthorhombic) and δ (tetragonal).7

Properties

δ-WB and WB2 crystals have metallic resistivities of 0.1 and 0.3 mΩ·cm, respectively. The oxidation of W2B, WB and WB2 is significant at temperatures above 600 °C. The final oxidation products contain WO3 and probably amorphous B2O3 or H3BO3. The melting temperatures of W2B, WB and WB2 are 2670, 2655 and 2365 °C, respectively.8

Properties
MaterialVickers hardness (GPa)Bulk Modulus (GPa)Melting point (°C)
W2B2670
WB~202655
WB2~202365
WB4~30

References

  1. Otani, S.; Ishizawa, Y. (1995). "Preparation of WB2−x single crystals by the floating zone method". Journal of Crystal Growth. 154 (1–2): 81–84. Bibcode:1995JCrGr.154...81O. doi:10.1016/0022-0248(95)00155-7. /wiki/Bibcode_(identifier) ↩

  2. Okada, S.; Kudou, K.; Lundström, T. (1995). "Preparations and Some Properties of W2B, δ-WB and WB2 Crystals from High-Temperature Metal Solutions". Japanese Journal of Applied Physics. 34 (1): 226–231. Bibcode:1995JaJAP..34..226O. doi:10.1143/JJAP.34.226. S2CID 95651766. /wiki/Bibcode_(identifier) ↩

  3. Mohammadi, R.; Lech, A. T.; Xie, M.; Weaver, B. E.; Yeung, M. T.; Tolbert, S. H.; Kaner, R. B. (2011). "Tungsten tetraboride, an inexpensive superhard material". Proceedings of the National Academy of Sciences. 108 (27): 10958–62. Bibcode:2011PNAS..10810958M. doi:10.1073/pnas.1102636108. PMC 3131357. PMID 21690363. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3131357 ↩

  4. Otani, S.; Ishizawa, Y. (1995). "Preparation of WB2−x single crystals by the floating zone method". Journal of Crystal Growth. 154 (1–2): 81–84. Bibcode:1995JCrGr.154...81O. doi:10.1016/0022-0248(95)00155-7. /wiki/Bibcode_(identifier) ↩

  5. Mohammadi, R.; Lech, A. T.; Xie, M.; Weaver, B. E.; Yeung, M. T.; Tolbert, S. H.; Kaner, R. B. (2011). "Tungsten tetraboride, an inexpensive superhard material". Proceedings of the National Academy of Sciences. 108 (27): 10958–62. Bibcode:2011PNAS..10810958M. doi:10.1073/pnas.1102636108. PMC 3131357. PMID 21690363. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3131357 ↩

  6. Woods, H. P.; Wawner, F. E.; Fox, B. G. (1966). "Tungsten Diboride: Preparation and Structure". Science. 151 (3706): 75. Bibcode:1966Sci...151...75W. doi:10.1126/science.151.3706.75. PMID 17842093. S2CID 7686903. /wiki/Bibcode_(identifier) ↩

  7. Okada, S.; Kudou, K.; Lundström, T. (1995). "Preparations and Some Properties of W2B, δ-WB and WB2 Crystals from High-Temperature Metal Solutions". Japanese Journal of Applied Physics. 34 (1): 226–231. Bibcode:1995JaJAP..34..226O. doi:10.1143/JJAP.34.226. S2CID 95651766. /wiki/Bibcode_(identifier) ↩

  8. Okada, S.; Kudou, K.; Lundström, T. (1995). "Preparations and Some Properties of W2B, δ-WB and WB2 Crystals from High-Temperature Metal Solutions". Japanese Journal of Applied Physics. 34 (1): 226–231. Bibcode:1995JaJAP..34..226O. doi:10.1143/JJAP.34.226. S2CID 95651766. /wiki/Bibcode_(identifier) ↩
